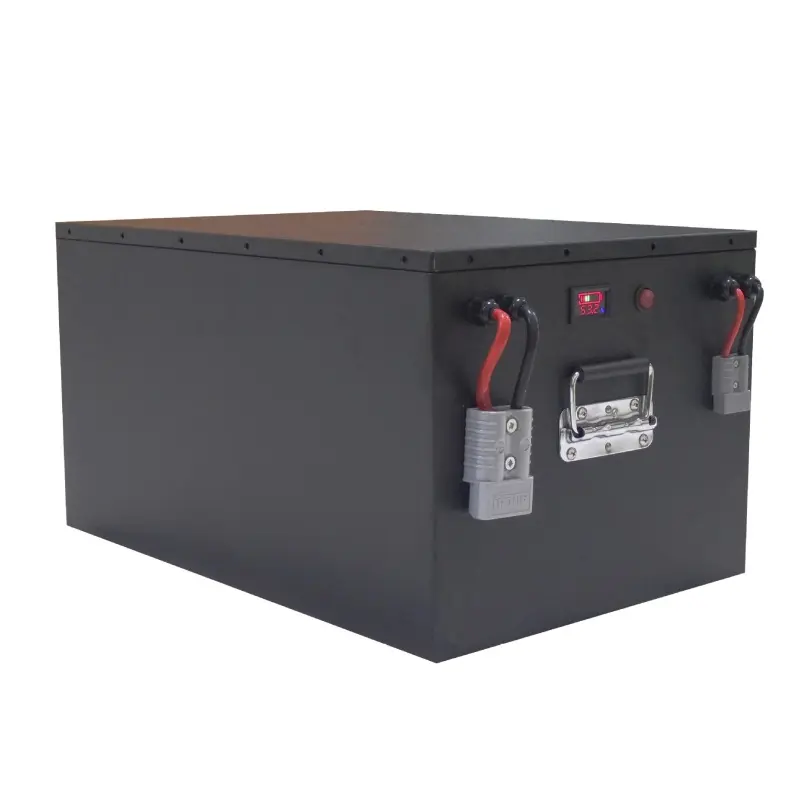

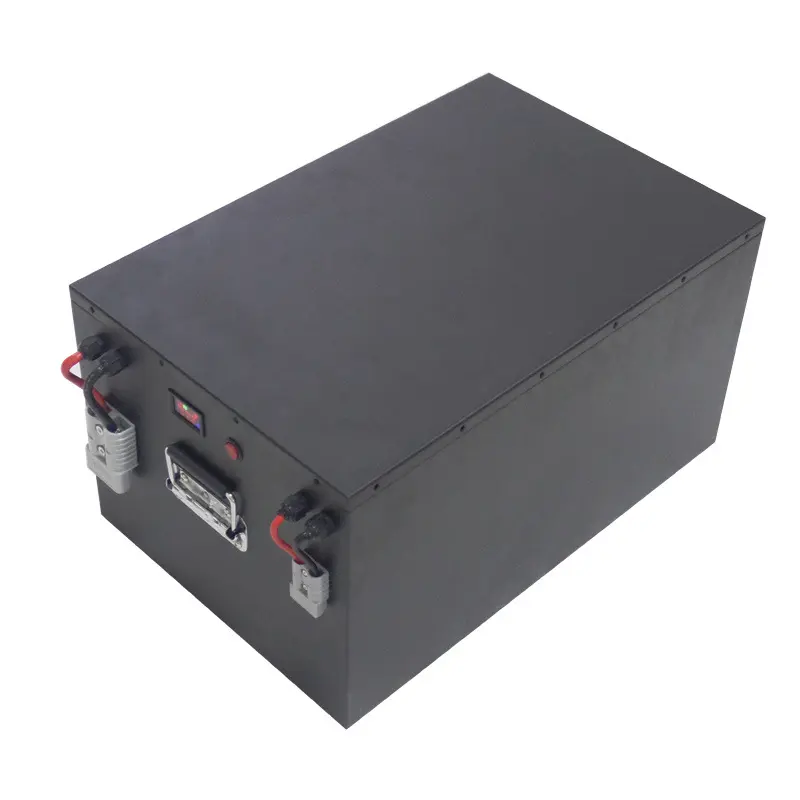

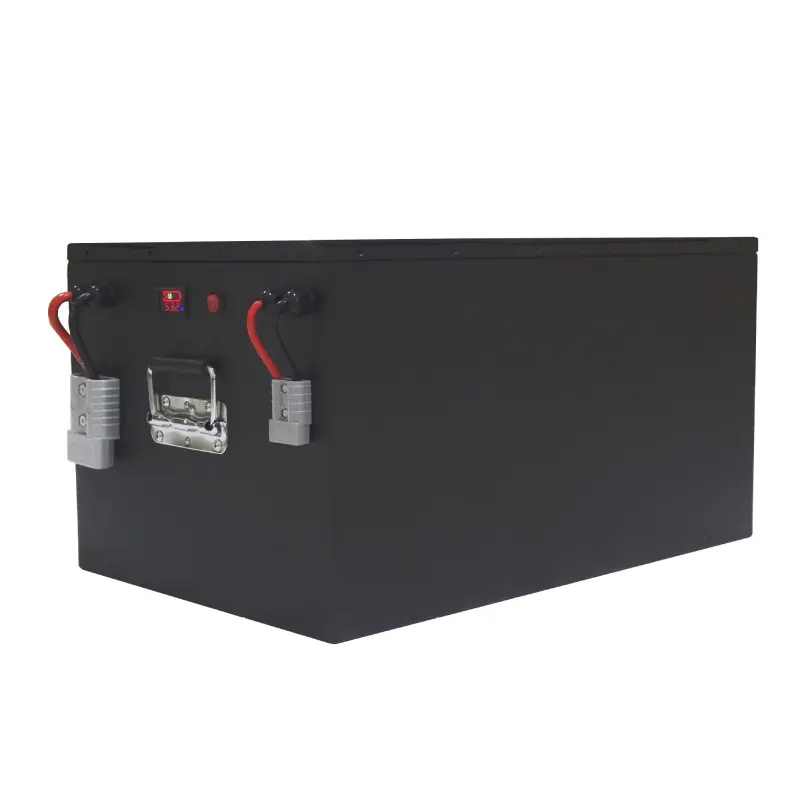

Lifepo4 Lithium Iron Phosphate Battery 72V 50Ah ສໍາລັບ Ebike Motorcycle RV Golf Cart

2023-06-01 02:15

ໂດຍສະເພາະ

ແຮງດັນຊື່	72V
ຄວາມສາມາດໃນນາມ	50Ah
ຄວາມຕ້ານທານພາຍໃນ	≤220mΩ
ຊີວິດວົງຈອນ	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
End of charge Voltage	14.6V
End of charge Current	100mA
Max.Continuous charge current	50A
ວິທີການຄິດຄ່າບໍລິການ	0.2C (0.5A) CC/CV
End of discharge Voltage	9.2V
Max. Pluse Discharge Current	50A/10S
Charge Temp	0 ~ 45 ℃
Discharge Temp	-10~55℃
Storage Temp	-10 ~ 45 ℃
Dimension(D×W×H)	332*170*220mm
ນໍ້າ ໜັກ	≤20Kg
ມີລະບົບປ້ອງກັນແບັດເຕີຣີອັດຕະໂນມັດ	ແມ່ນແລ້ວ

Charge plugs and Discharge connectors optional

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.

ຄຸນ​ລັກ​ສະ​ນະ

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

4. ທົນທານຕໍ່ການປ່ອຍນ້ ຳ ເກີນແລະການຮັກສາໄວ້

5.Strong charging acceptance and quick-charging capability

6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature

10.Excellent large current discharge performance especially in startup and climbing

OEM

We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.



 ໃບສະ ໝັກ

ຄໍາຮ້ອງສະຫມັກ

* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided



ໂຮງງານຂອງພວກເຮົາ

ຄຳ ຖາມທີ່ຖາມ

1,Q: What's the main product in AIN?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2, ຖາມ: ຄ່າໃຊ້ຈ່າຍແມ່ນຫຍັງ?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
3, ຖາມ: ແມ່ນຫຍັງທີ່ເກີນການປ່ອຍນໍ້າ?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.
4. ຖາມ: ຂ້ອຍສາມາດມີຄໍາສັ່ງຕົວຢ່າງບໍ?
A: ແມ່ນແລ້ວ, ພວກເຮົາຍອມຮັບເອົາຄໍາສັ່ງຕົວຢ່າງເພື່ອທົດສອບແລະກວດສອບຄຸນນະພາບ. ໝໍ້ ໄຟສາມາດຜະລິດໄດ້ຕາມຄວາມຕ້ອງການ.
5. ຖາມ: ທ່ານມີຂອບເຂດຈໍາກັດ MOQ ບໍ?
A: ແມ່ນແລ້ວ, ພວກເຮົາມີຂອບເຂດ MOQ ສຳ ລັບການຜະລິດມວນສານ, ແຕ່ວ່າມັນຂື້ນກັບຕົວແບບແບັດເຕີຣີ. ກະລຸນາຕິດຕໍ່ພວກເຮົາ ສຳ ລັບລາຍລະອຽດ.
6. ຖາມ: ເຮັດແນວໃດກ່ຽວກັບເວລາ ນຳ?
A: ຕົວຢ່າງຈະໃຊ້ເວລາ 5-7 ມື້ເຮັດວຽກ. ການຜະລິດມວນສານຈະໃຊ້ເວລາ 25-30 ວັນ. ມັນຂື້ນກັບປະລິມານ.
7. Q: ແນວໃດກ່ຽວກັບເວລາຂົນສົ່ງແລະເວລາສົ່ງ?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. ຖາມ: ຈະເປັນແນວໃດກ່ຽວກັບການບໍລິການຫລັງການຂາຍ?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
