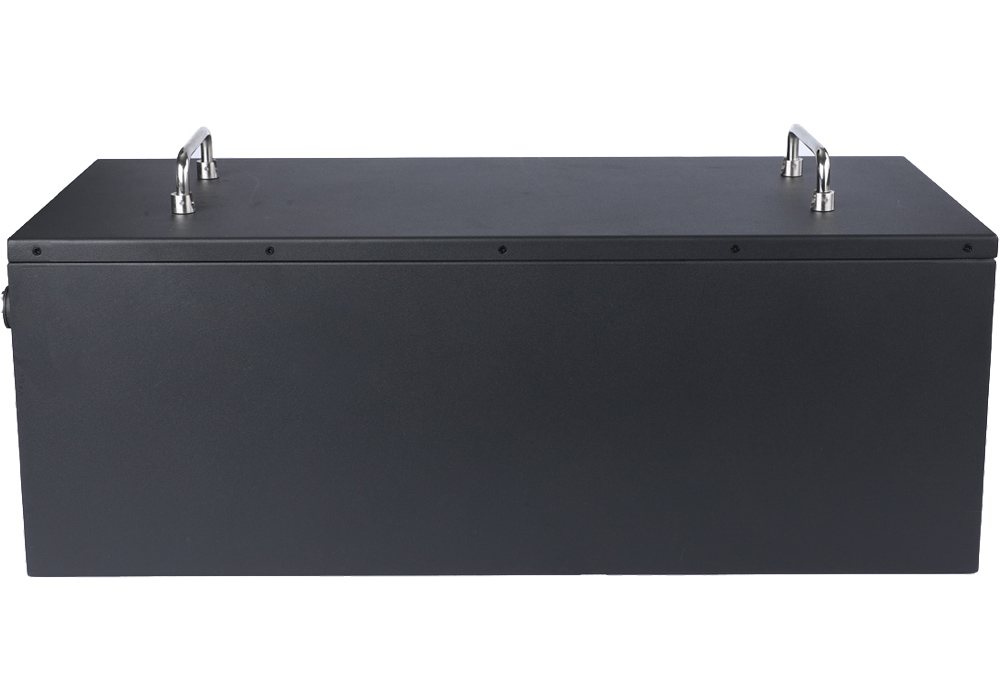

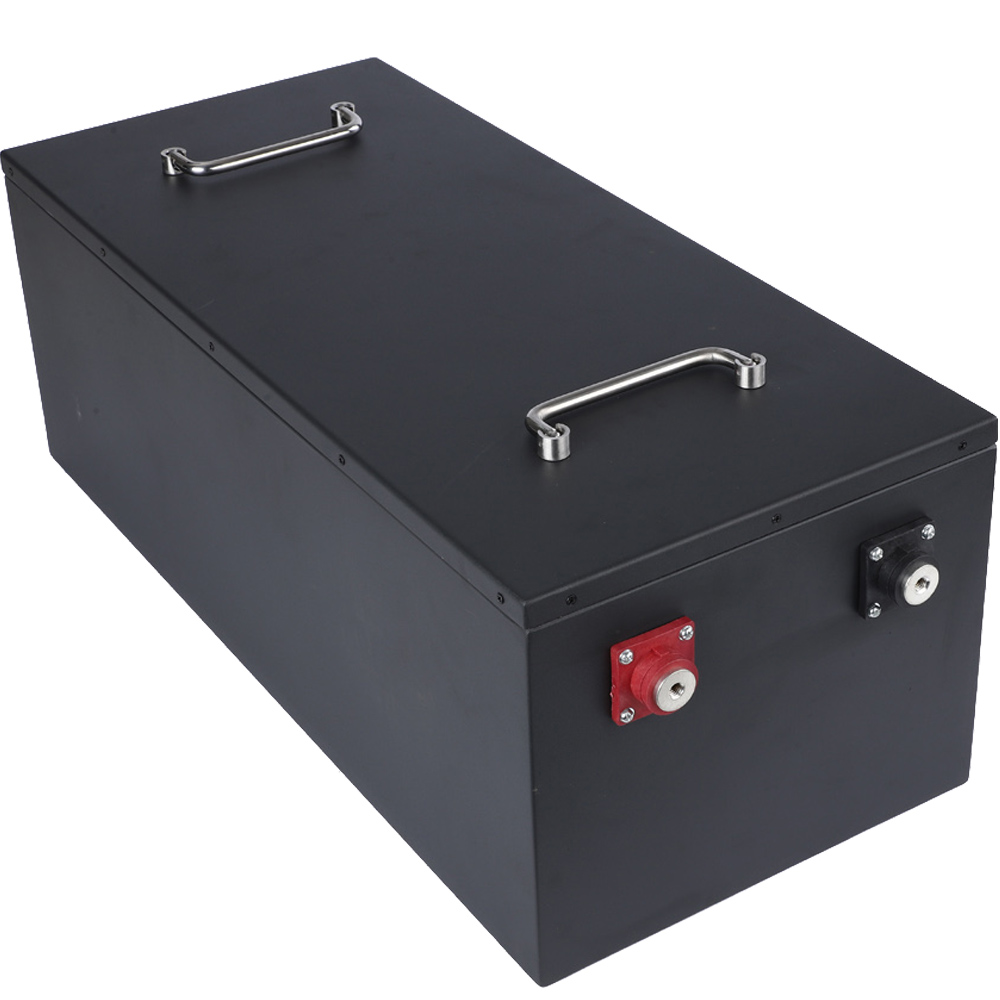

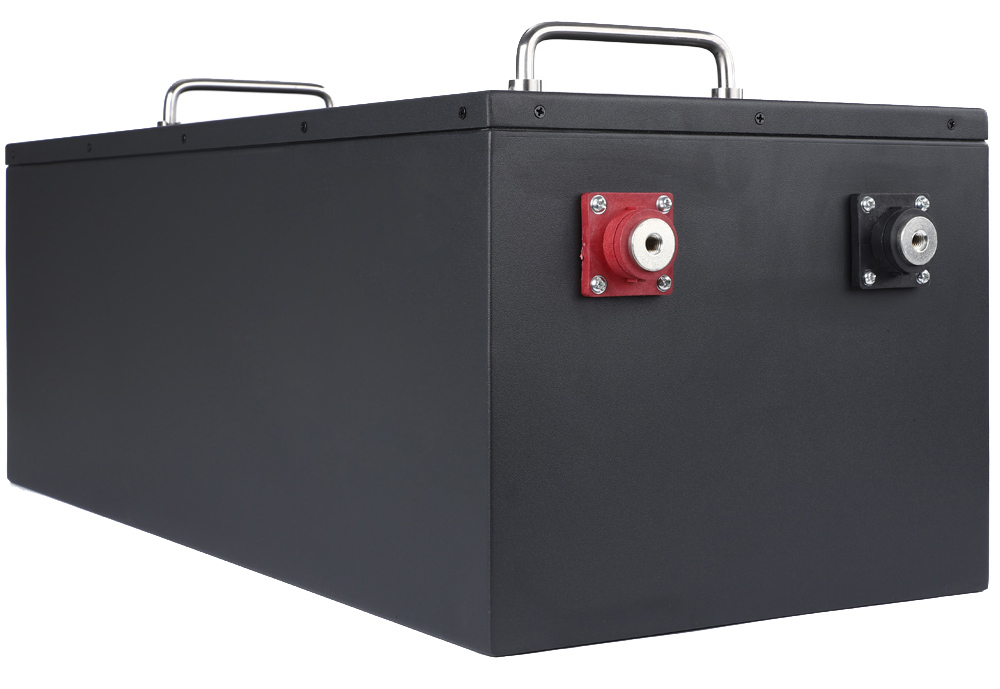

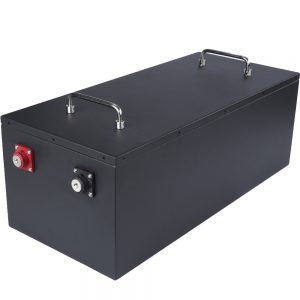

Deep Cycle 36V Battery Pack 12S1P LFP Lithium ion 36V Battery Pack Rickshaw EV RV AGV E-bike Lifepo4 36V 100Ah Batterie

2021-02-05 02:13

ຜູ້ກວດກາຜະລິດຕະພັນ
ຊອງຫມໍ້ໄຟ
ໂດຍສະເພາະ
ຂໍ້ສັງເກດ
Model No.
AIN36100
/
ປະເພດແບດເຕີລີ່
36V LiFEPO4 battery
/
ແຮງດັນຊື່
36V / 38.4Volt
customizable Voltage
Charge Cut-off (BMS protection)
45volt±0.35volt
/
Discharge Cut-off (BMS protection)
27.6volt±1.2volt
/
Standard / Nominal Capacity
ຂະ ໜາດ 105Ah
customizable
Approx. Weight
29kg
/
Pack Type
12S1P
customizable
Reserve Minutes @0.2C 25℃ /
300minutes
/
ແຮງດັນແຮງງານ
27.6volt~43.8volt
customizable
ສູງສຸດໄຫຼໃນປະຈຸບັນ
300A±25A within 5second
customizable
ຄວາມປະທັບໃຈ
≤10mΩ
/
Built-in Cell Model
Prismatic @ 100Ah/50Ah/300Ah
customizable
ອຸນຫະພູມໄລ່
32(℉)~122(℉)
/
ອຸນຫະພູມໄຫຼ
-4(℉)~140(℉)
/
ຊີວິດຂອງວົງຈອນ
4000cycle (80%DOD)
/
Max Cont. discharge current
100A
customizable
ວິທີການຄິດຄ່າບໍລິການ
CC / CV
customizable
Built-in BMS system
ແມ່ນແລ້ວ
/
BMS Protection Type
 Over-Charge, Over-Dishcarge, Over-Voltage, Over-Current, Short-Circuit, Auto-reset
/
BMS Balance Type
Active Auto-Balancing
/
ຂະ ໜາດ
53*22*17cm
customizable
Connection Type
 Modular Pack welding or laser spot welding
/
ບໍລິສັດ BMS
Balanced Current ( BMS )
20~30mA
/
Balanced voltage
 3.6volt
/
Over Charge Protection
3.75±0.0.3v / cell
/
Release Voltage for overcharge
3.60±0.05v
/
Rated Charge Current Protection
100A
customizable
Detection delay (over-Charge)
1000mS
/
Short circuit trigger condition
 external load short circuit
/
Detection delay (short-circuit)
200uS
/
Over-Discharge Cut-Off Voltage
2.1V±0.1V / cell
/
Over-Discharge Release Voltage
2.3V±0.1v
/
Discharge  protection current
300 (10mS)
/
Rated Discharge Current
≤100A
customizable
Release condition (short circuit & over discharge)
Disconnect Load & Charge Activation
/
Detection delay (over-discharge )
1000mS
/
Communication interface
 Bluehost / RS485 / RS232 GPS protocol port for Choice
customizable
Temperature control protection
Discharge protection: 167 (℉)±40 (℉)
/
ອຸນຫະພູມເຮັດວຽກ
-4(℉) ~ 176(℉)
/
Over Heat Temperature Protection(Charge&Dishcarge)
167(℉)±41(℉)
/
High temperature release value(Charge&Dishcarge)
127.4(℉)
/
ຕົວຊີ້ວັດ LED
Display Value
Voltage / Capacity percent / Work Temperature
customizable
ໃບຢັ້ງຢືນ
CE, MSDS, CB-SG, UN38, UL1642
customizable
Outside Battery Box
Outside Protection Box
Stainless steel outer box
Available ABS BOX Series
IP Level
IP65
customizable
Aging
Lead time
5-15days normally
rely on the order quantity
Shipment Time
7-12days by express, 15~35days by Air, sea and rail transportation
/
Quality Assurance
ຮັບປະກັນ
3 year / 36 months
/

Product advantages

◆ Preferred supply high-quality batteries, Exceptional voltage stability
◆ >4000 Cycles at 80% depth of discharge to ensure long cycle life
◆ Rugged mechanical design with Modular design or laser spot welding to group
◆ Suitable for high-power power products
◆ Automatic system cell Charging balancing, Maintenance-free & No hydrogen generation or gassing
◆ Direct replacement for lead-acid batteries, <70% the weight of similarly sized SLA batteries
◆ Support fast charging & 100% deep cycle
◆ High discharge rate, sustainable discharge 300A @ 3~5 second
◆ Low power consumption design, long time standby
◆ Smart LCD Auto-Display Module for Capacity Rate and Voltage / Temperature display
◆ BMS powerful intelligent protection function and automatic short circuit & activation protection function
◆ IP56 water and dust resistant Group 31 case
◆ Stainless steel outer box-compression resistant, shock resistant, durable
◆ Environmentally friendly design and quality assurance in compliance with RoHS MSDS UN38 UL CB requirements
◆ Stock / Customize available for quick delivery in the US /UK / DE / FR or worldwide

ຄໍາຮ້ອງສະຫມັກ

1) Energy Storage: UPS, backup, power station.

2) EV: Golf trolleys, Electric scooters.

3) Solar Energy Storage Systems, Wind Energy Storage,Solar/Storage Home System, Solar Street Light.

4) ສະຖານນີໂທລະຄົມມະນາຄົມ.

5) Marine Boat.

6) UPS (Uninterrupted Power Supply).

7) General Energy Storage (Such as Back-up Power, Miner's lamp, portable power supply, digital products, etc.)

ແບດເຕີລີ່ LFP ທີ່ກ່ຽວຂ້ອງ

ໂຮງງານຂອງພວກເຮົາ



ການຫຸ້ມຫໍ່ແລະການຂົນສົ່ງ

ຄຳ ຖາມທີ່ຖາມ
Q1: ທ່ານເປັນໂຮງງານບໍ?
A1: Yes, we are the original factory, specializing in NiMH battery and lithium battery for more than 10 years.

Q2: ຂ້ອຍສາມາດວາງຄໍາສັ່ງຕົວຢ່າງໄດ້ບໍ?
A2: ແມ່ນແລ້ວ, ພວກເຮົາຍອມຮັບເອົາ ຄຳ ສັ່ງຕົວຢ່າງເພື່ອທົດສອບແລະກວດກາຄຸນນະພາບ, ໝໍ້ ໄຟສາມາດເຮັດໄດ້ຕາມຄວາມຕ້ອງການ.

Q3: ທ່ານມີ MOQ ບໍ?
A3: ບໍ່ ຈຳ ກັດ, ແຕ່ທ່ານສັ່ງຫຼາຍເທົ່າໃດ, ທ່ານກໍ່ຈະໄດ້ລາຄາດີຂຶ້ນ.

Q4: ວັນທີສົ່ງຂອງທ່ານແມ່ນຫຍັງ?
A4: ປົກກະຕິແລ້ວ 3-5 ອາທິດຫຼັງຈາກການຈ່າຍເງິນໄດ້ຖືກຢືນຢັນວ່າຂຶ້ນກັບປະລິມານການສັ່ງຊື້ທີ່ແນ່ນອນ.

Q5: ວິທີການຂົນສົ່ງໃດທີ່ທ່ານມັກຈະໃຊ້?
A5: ໂດຍທົ່ວໄປແລ້ວ, ປະລິມານນ້ອຍຜ່ານທາງອາກາດຫລືທາງອາກາດ. ປະລິມານການສັ່ງຊື້ ຈຳ ນວນຫລາຍຜ່ານທະເລ.

Q6: ປະເພດຂອງການຫຸ້ມຫໍ່ທີ່ທ່ານໃຫ້?
A6: Standard export carton or wooden case according to battery size and weight, the package will be strong enough for long-distance transport.

ພວກເຮົາຫວັງຢ່າງຈິງໃຈວ່າຈະສ້າງສາຍພົວພັນການຮ່ວມມືໄລຍະຍາວກັບທ່ານ, ຖ້າທ່ານມີ ຄຳ ຖາມ, ກະລຸນາຢ່າລັງເລທີ່ຈະຕິດຕໍ່ຫາພວກເຮົາ!

ໝາຍ ເຫດ: ຜະລິດຕະພັນທັງ ໝົດ ບໍ່ສະ ໜັບ ສະ ໜູນ ການຂາຍຍ່ອຍ, ກະລຸນາຕິດຕໍ່ຫາລາຄາສິນຄ້າ!
