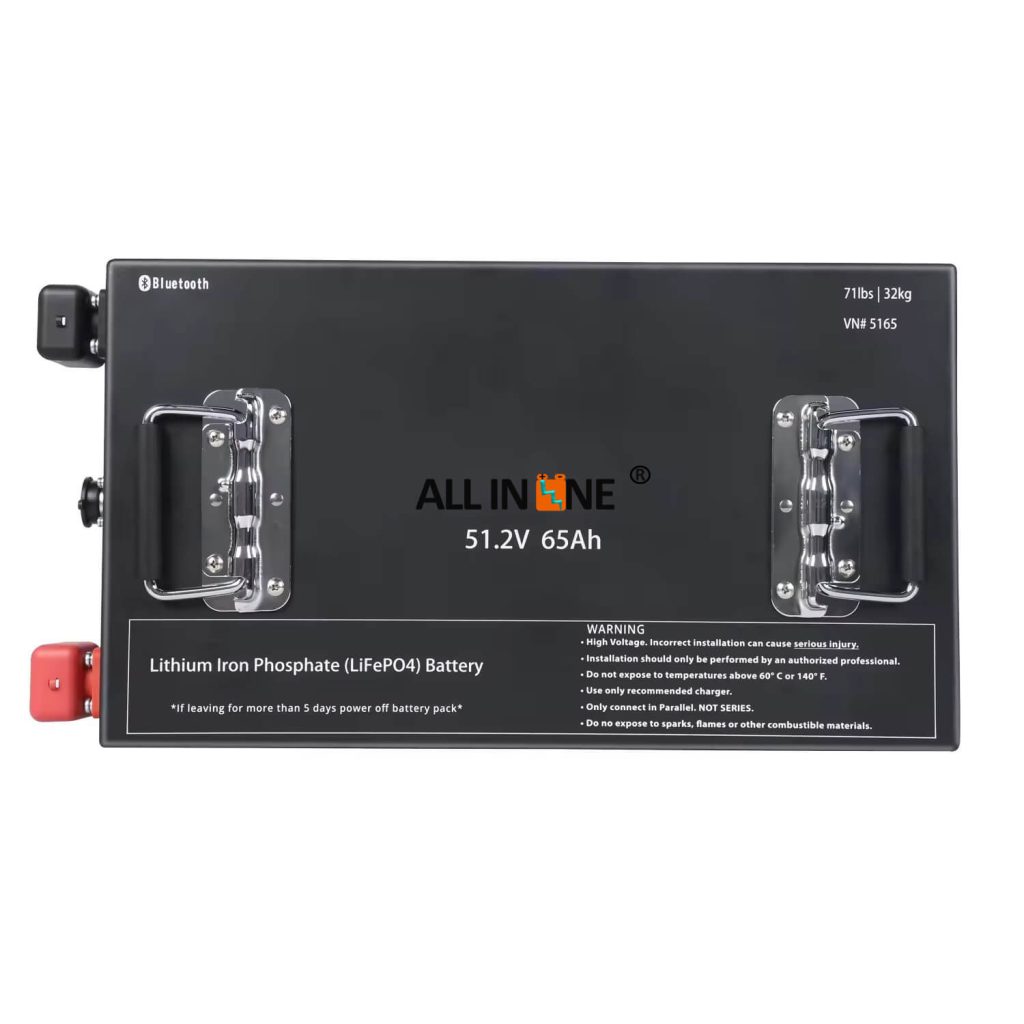

ລົດກ໊ອຟ 51.2v 65Ah lifepo4 lithium ion battery pack deep cycle IP67

2024-06-28 03:25

ໂດຍສະເພາະ

ຕົວແບບ	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
ແຮງດັນຊື່	51.2V	51.2V	51.2V	51.2V	76.8V
ຄວາມສາມາດໃນນາມ	ຂະ ໜາດ 105Ah	ຂະ ໜາດ 105Ah	65Ah	150Ah	ຂະ ໜາດ 105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58.4V	58.4V	58.4V	58.4V	87.6V
ປະຈຸບັນຮັບຜິດຊອບສູງສຸດ	100A	100A	60A	150A	100A
ກະແສໄຫຼຕໍ່ເນື່ອງສູງສຸດ	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
ແຮງດັນໄຟຕັດ	43.2V	43.2V	43.2V	43.2V	43.2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
ອຸນຫະພູມໄລ່	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃
ອຸນຫະພູມໄຫຼ	-20 ~+60	-20 ~+60	-20 ~+60	-20 ~+60	-20 ~+60
Cycle Life (25℃, 0.5C, 100% DOD)	> 6000	> 6000	> 6000	> 6000	> 6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
ລະດັບການປົກປ້ອງ	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
ນໍ້າ ໜັກ	48.3kg	49kg	32 ກກ	71kg	72.8kg
Communication Protocol	CAN/RS485	RS485	RS485	CAN/RS485	CAN/RS485



ຄຸນລັກສະນະທີ່ ສຳ ຄັນ

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

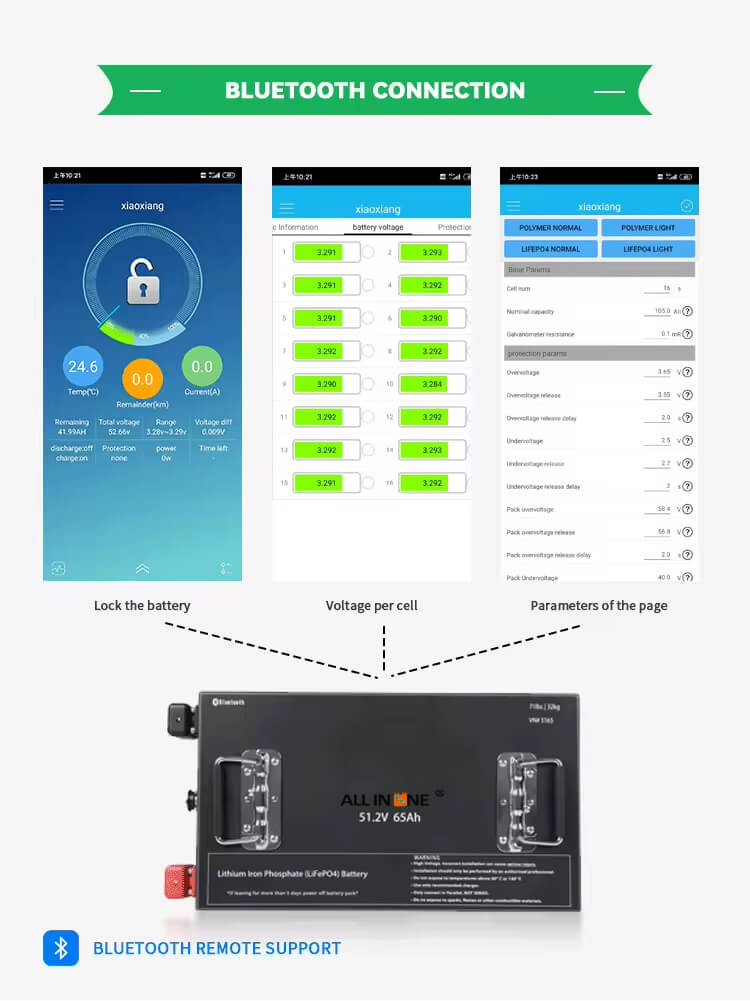

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

ພວກເຮົາສັນຍາ
1. ຜະລິດຕະພັນທັງຫມົດຈະເປັນ ທົດສອບແລ້ວ 100% ກ່ອນການຂົນສົ່ງເພື່ອຮັບປະກັນວ່າຜະລິດຕະພັນບໍ່ມີບັນຫາດ້ານຄຸນນະພາບ.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



ໃບສະ ໝັກ

ໂຮງງານຂອງພວກເຮົາ

ການຫຸ້ມຫໍ່ແລະການຂົນສົ່ງ

ຄຳ ຖາມທີ່ຖາມ

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

Q2: ທ່ານໃຫ້ບໍລິການຫລັງການຂາຍບໍ?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

Q3 ຂໍ້ດີຂອງບໍລິສັດຂອງທ່ານແມ່ນຫຍັງ?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

Q4: ທ່ານຍອມຮັບ OEM / ODM ບໍ?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: ການເວົ້າທົ່ວໄປ, ປະມານ 25-30 ມື້ຂື້ນກັບລາຍການທີ່ແຕກຕ່າງກັນຫຼັງຈາກໄດ້ຮັບການຈ່າຍເງິນແລະການຢືນຢັນກ່ຽວກັບຕົວຢ່າງ.

Q6:Are your battery real capacity?
A6: ຈຸລັງແບັດເຕີຣີທັງ ໝົດ ຂອງພວກເຮົາທີ່ມີເກຣດ A, ມີຄວາມສາມາດ ໃໝ່ ແລະ 100%.

Q7: ທ່ານແມ່ນໂຮງງານຫລືບໍລິສັດການຄ້າບໍ?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

Q8: ໃບຢັ້ງຢືນປະເພດໃດແດ່?
A8: ພວກເຮົາສາມາດສະ ໜອງ CE, ROHS, FCC, IEC62133, MSDS, UN38.3 ຖ້າປະລິມານການສັ່ງຊື້ຂອງທ່ານໃຫຍ່.
